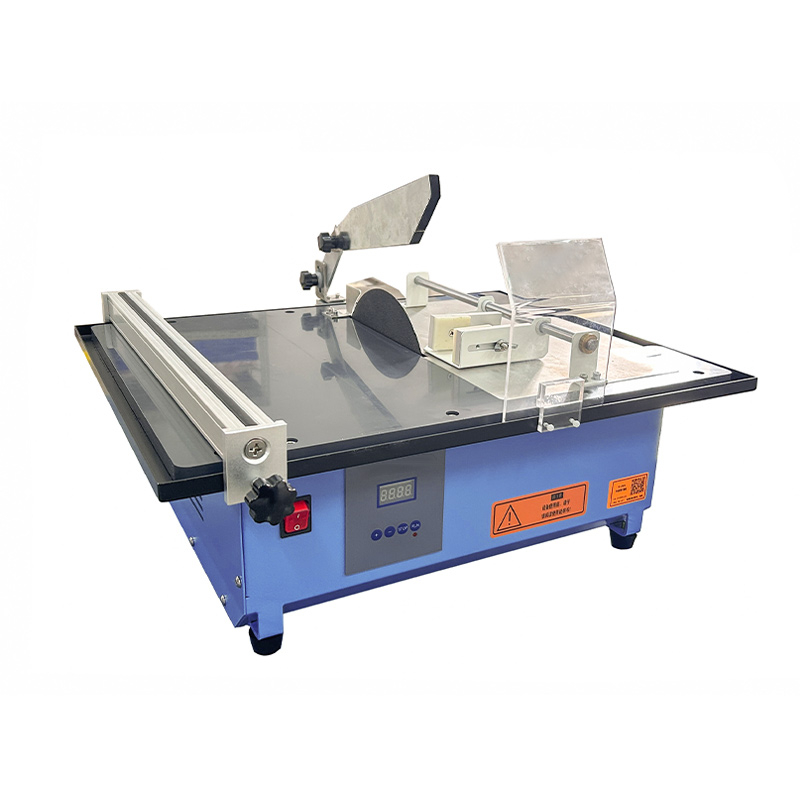

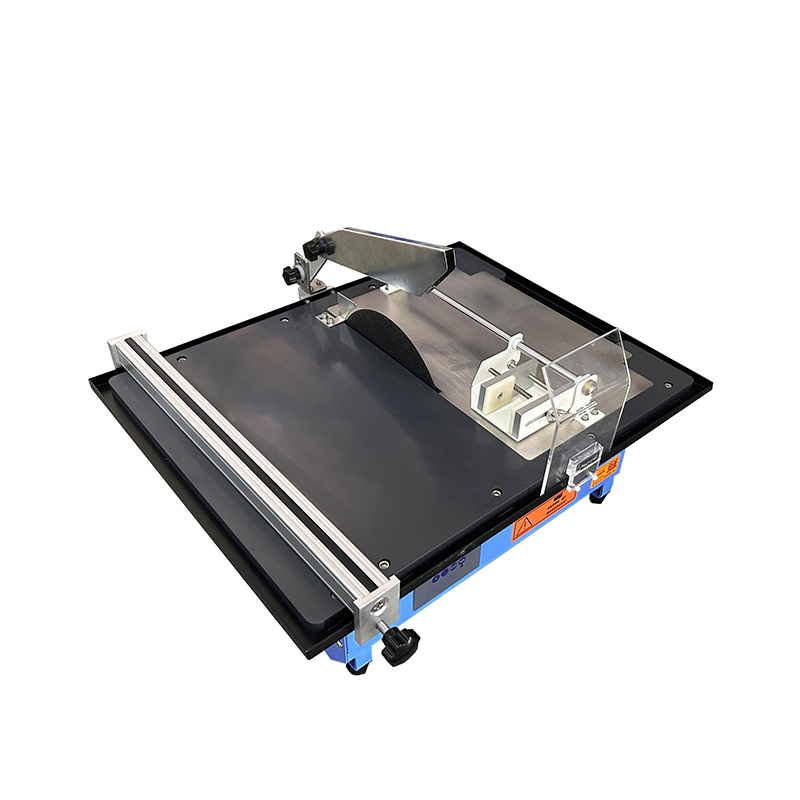

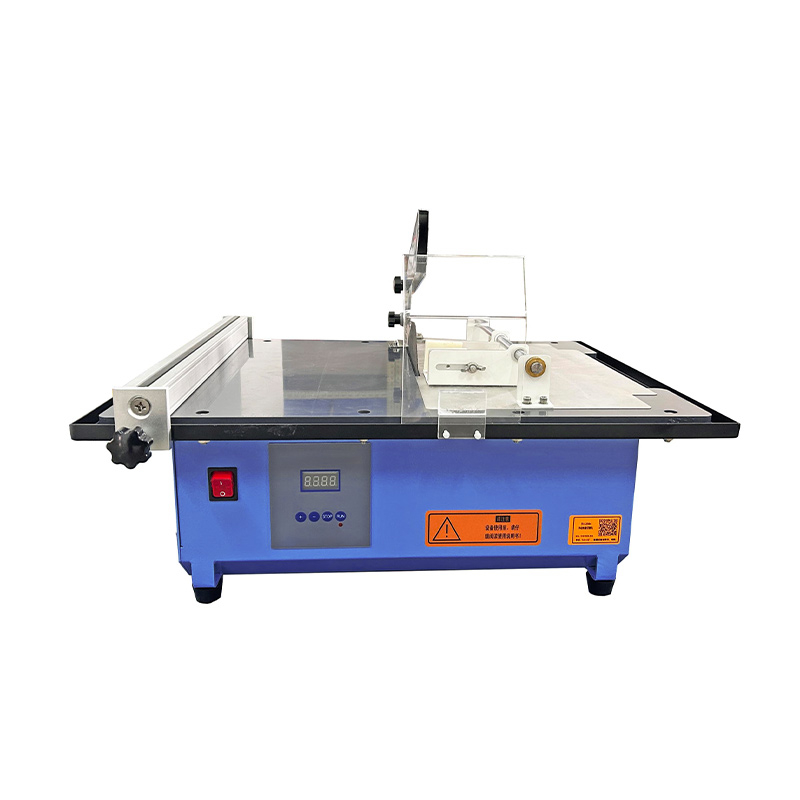

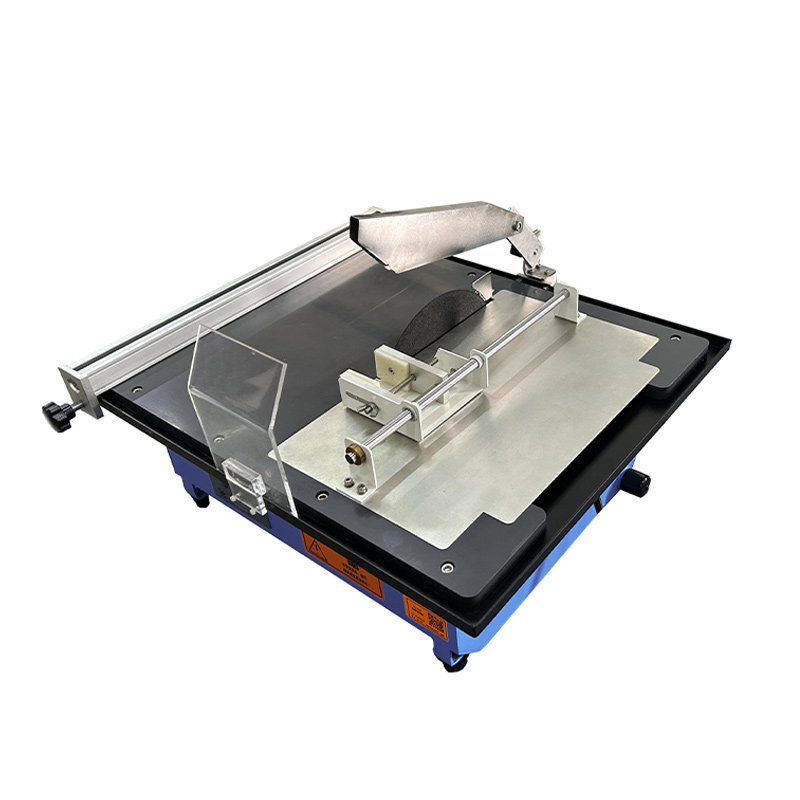

CY-200H manual fast cutting machine is suitable for all kinds of crystals, ceramics, glass, rocks, PCB board, composite materials, polymer materials, metal materials and other materials rough processing, can use sintered diamond saw blade, electroplated diamond saw blade and resin saw blade. CY-200H manual fast cutting machine manual fast feed sample during the cutting process, according to the different cutting materials to adjust the saw blade rotation speed. The body comes with cooling water box, and a small amount of cooling water can meet the cutting needs and save water. The fuselage is small and takes up little space. CY-200H manual fast cutting machine body design is simple, easy to operate, equipped with sample fixture, can ensure the steady progress of sample cutting process and the accuracy of cutting size. The body shell is formed with advanced resin once, waterproof, corrosion-resistant, lightweight, and is the preferred tool for sample roughing in the laboratory.
It can be stepless speed change within 200rpm-2000rpm to meet the cutting needs of different samples.
High spindle speed, fast cutting speed.
Sample card loading operation is convenient and fast.
The motor is equipped with overheat protection device.
If you are interested in our Manual fast cutting machine, please contact us for more information and a quote.
Contact number: +8615617875939
E-mail: gordon@zztainuo.com
Contact: Gordon Zhang
Wechat: 15617875939
WhatsApp: +8613592553141
Product name | Fast speed cutting machine |
Product model | CY-200H |
Installation condition | 1. Temperature and humidity: 10-85%RH (at 25℃ no condensation) Temperature: 0-45℃. 2. There is no strong source and corrosive gas around the equipment. 3. Power supply: National standard three-pole socket AC220V 50Hz 10A must have a good grounding line |
Main parameter
| 1. Power port: AC220V 50Hz 2. Drive motor parameters: DC220V 250W 1.5A 2000rpm (MAX) 3. Spindle speed: 200rpm-2000rpm 4. Saw blade size: Ø200 inner diameter 25.4/32mm 5. Depth cutting max: 45mm 6. Clamp mouth size :54X40mm 7. Product specifications: · Size: 550mm×440mm×255mm · Weight: 18kg |
Note: The actual power supply parameters of the device are subject to the label affixed to the back of the product. | |
Serial number | Name | Quantity |
1 | Cutting ruler | 1set |
2 | Edge sintered diamond saw blade (Ø200mm×Ø25.4mm×1.0mm) | 1piece |
3 | Silicon carbide saw blade (Ø100mm×Ø12.7mm×0.4mm) | 5pcs |
4 | Corundum saw blade (Ø100mm×Ø12.7mm×0.4mm) | 5pcs |
5 | Saw blade guard | 1piece |
The application field of manual fast cutting machine is very wide, mainly including the following aspects:
1. Material roughing: Manual fast cutting machine is suitable for roughing all kinds of crystals, ceramics, glass, rocks, PCB boards, composite materials, polymer materials, metal materials and other materials.
2.Scientific research and education: This kind of equipment is suitable for colleges and universities, scientific research institutes to use, for the rough processing of crystals, ceramics, quartz glass, rock samples, mineral samples and metallographic samples.
3.Industrial manufacturing: In the field of industrial manufacturing, manual fast cutting machines can be used for precise cutting of metals, plastics, rubber and other materials, especially in the automobile manufacturing industry, machinery manufacturing industry and electronic and electrical industries.
4.Architectural decoration: The demand for manual cutting equipment in the architectural decoration industry is mainly reflected in the processing of stone, tile, glass and other hard materials.
5.Art and crafts production: In the field of art and crafts production, the application of manual cutting equipment pays attention to personalization and creativity, artists and craftsmen need equipment to provide extremely high cutting accuracy and stable operating performance.
6.High-end manufacturing industries such as aerospace and shipbuilding: These industries have extremely strict standards for the reliability, durability and safety of equipment.
7.Mining: In the process of resource mining, manual cutting tools need to be used for ore body segmentation, sample extraction and other work.
8.Mechanical maintenance and DIY market: With the popularity of mechanical equipment use and the growth of personalized demand, the demand for manual cutting tools such as individual craftsmen and amateurs is increasingly strong.
9.New energy, electronic information, aerospace and other emerging industries: The application of manual cutting tools in these fields is also gradually expanding, and these industries have extremely high requirements for material processing accuracy and efficiency.
To sum up, the manual fast cutting machine has important applications in many fields because of its portability, flexibility and certain cutting accuracy.
